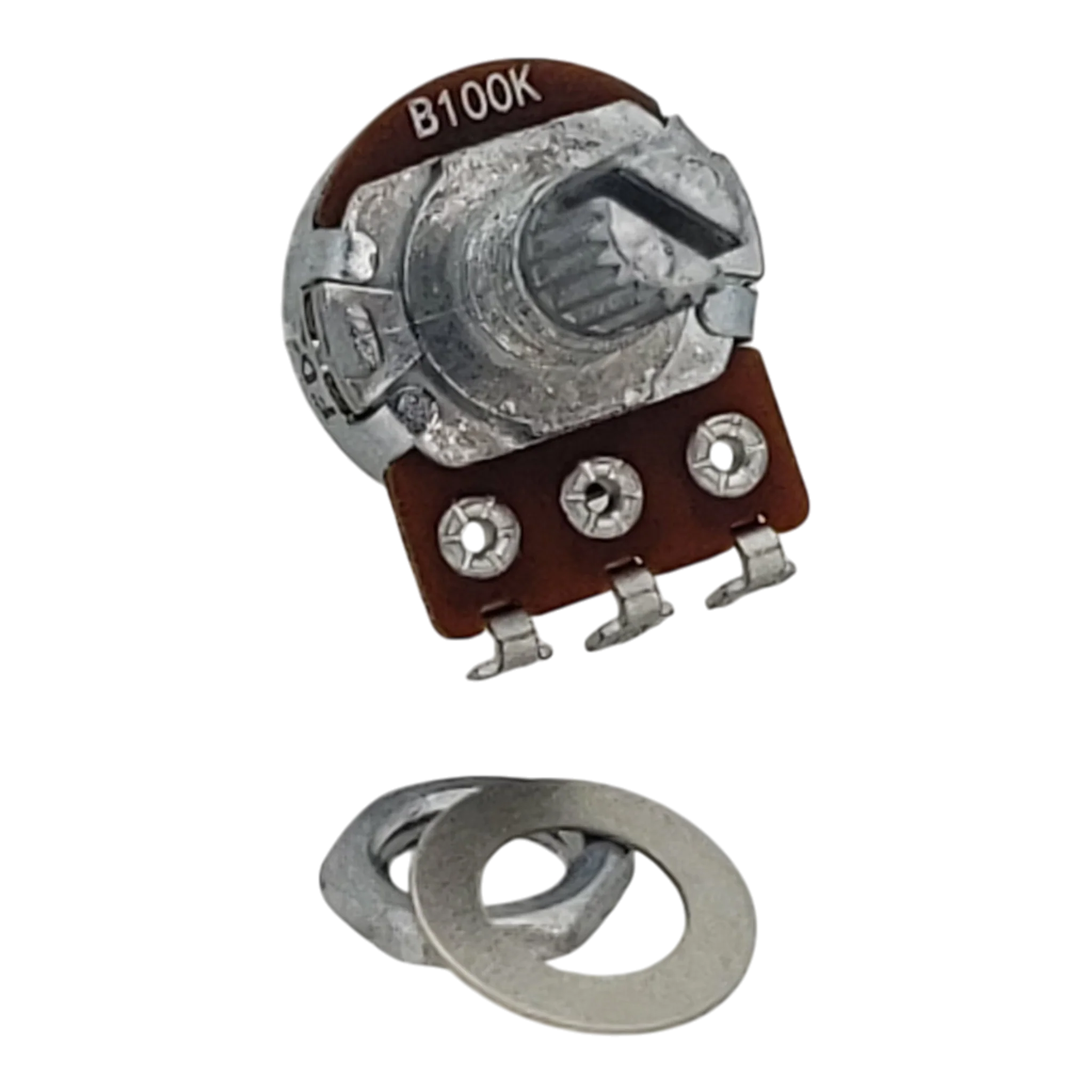

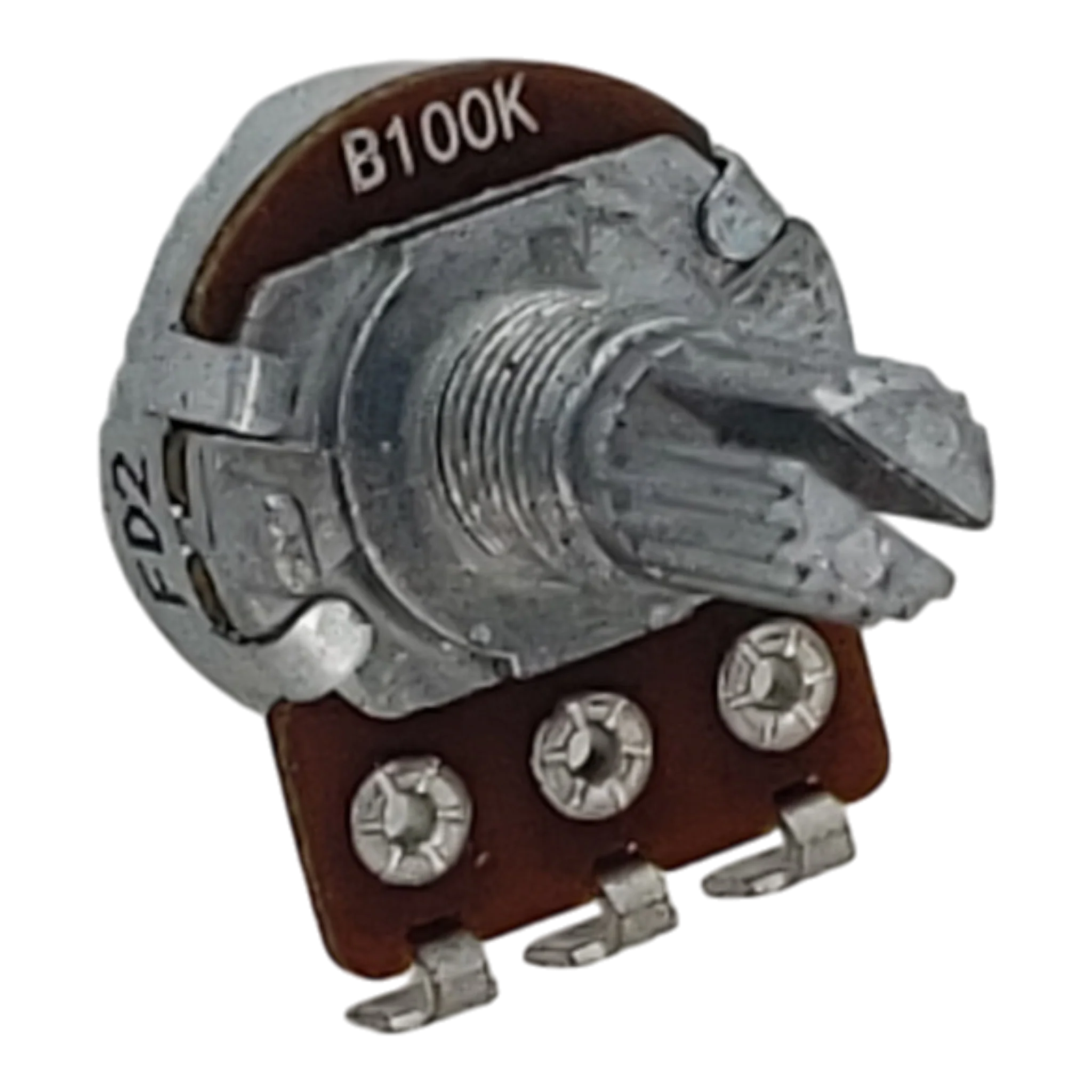

100K Linear 1/8W Potentiometer with Split Splined Shaft

This 100K linear taper potentiometer is a useful adjustable control for electronics repairs, audio circuits, DIY projects, control panels, and custom builds. The linear taper changes resistance evenly as the shaft turns, giving smooth and predictable adjustment across the control range.

The solder lug terminals make this potentiometer easy to wire by hand, while the 6mm split splined shaft fits many standard push-on knobs. It is a good option for panel-mounted controls and replacement jobs where a compact 17mm potentiometer is needed.

100K Linear Potentiometer for Controls and Repairs

A 100K potentiometer is useful in many signal-level and low-power circuits. It can be used for adjustable resistance, voltage divider circuits, audio projects, test fixtures, and general control applications.

Technical Specifications

Specification	Details
Manufacturer	Alpha
Manufacturer Part Number	B100K 17mm
Resistance	100K ohm
Taper	Linear, Type B
Power Rating	0.125W
Adjustment Type	Top adjustment
Terminals	Solder lugs
Shaft Type	Split splined / knurled shaft
Shaft Diameter	6mm
Shaft Length	17mm total, 10.5mm + 6.5mm
Thread Length	6.5mm
Mounting Hole	7.5mm
Base Diameter	16mm
Rotation Angle	300° ± 5°
RoHS	Yes
Vetco SKU	TEA-1958

Why Vetco Carries This Potentiometer

Vetco carries 100K linear potentiometers because they are common, useful parts for electronics builders and repair customers. This solder lug version is easy to install, works with standard knobs, and is a practical part to keep on hand for control and adjustment circuits.
