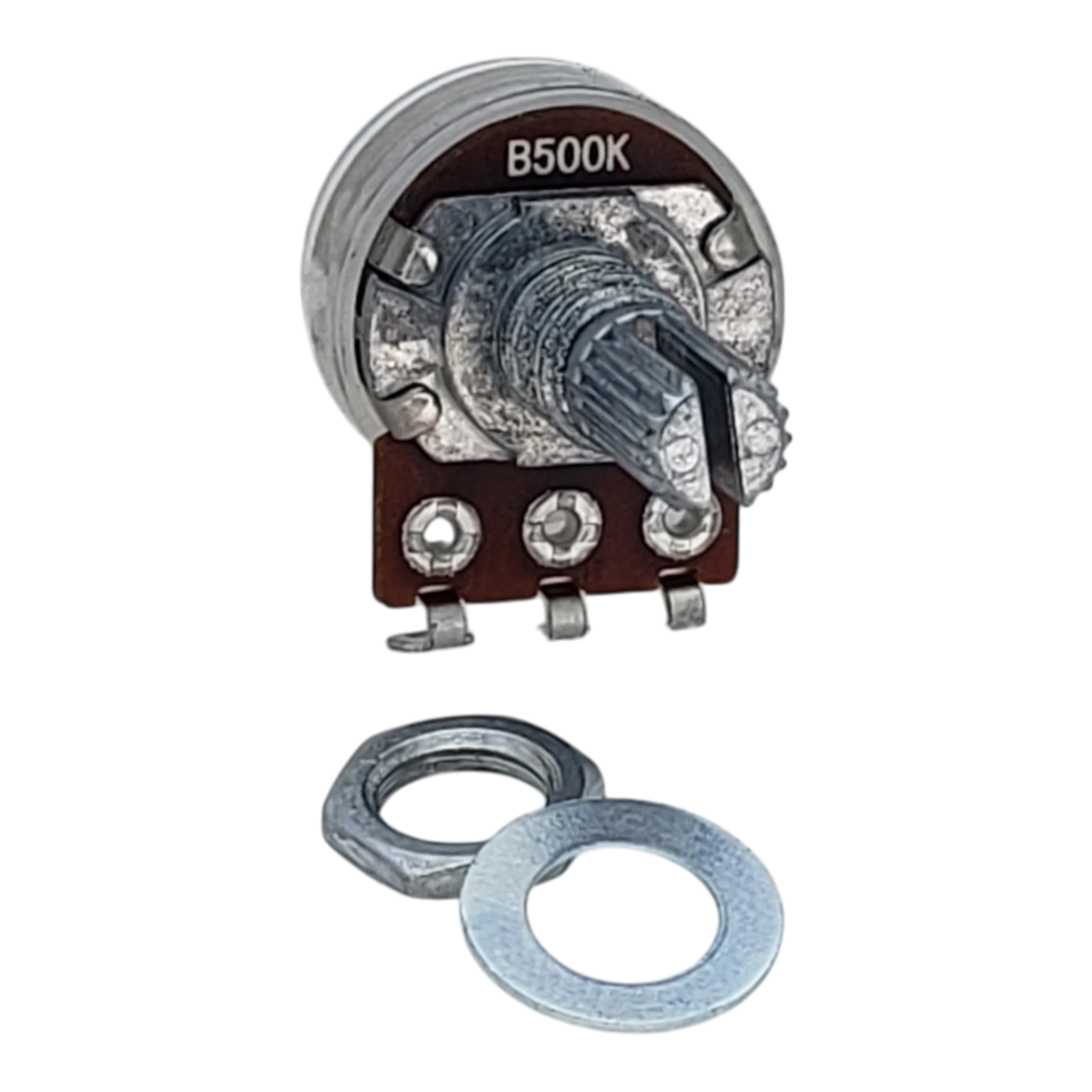

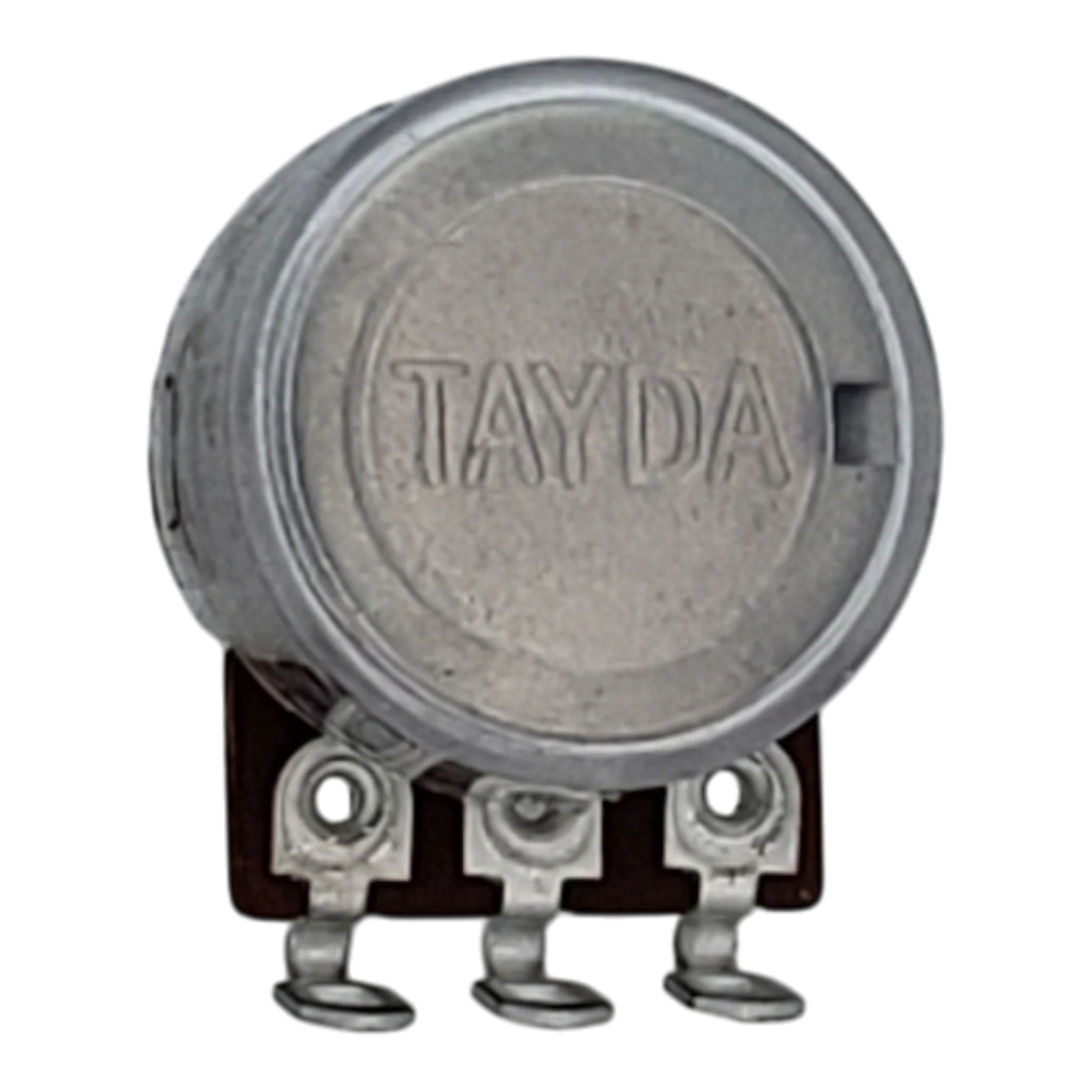

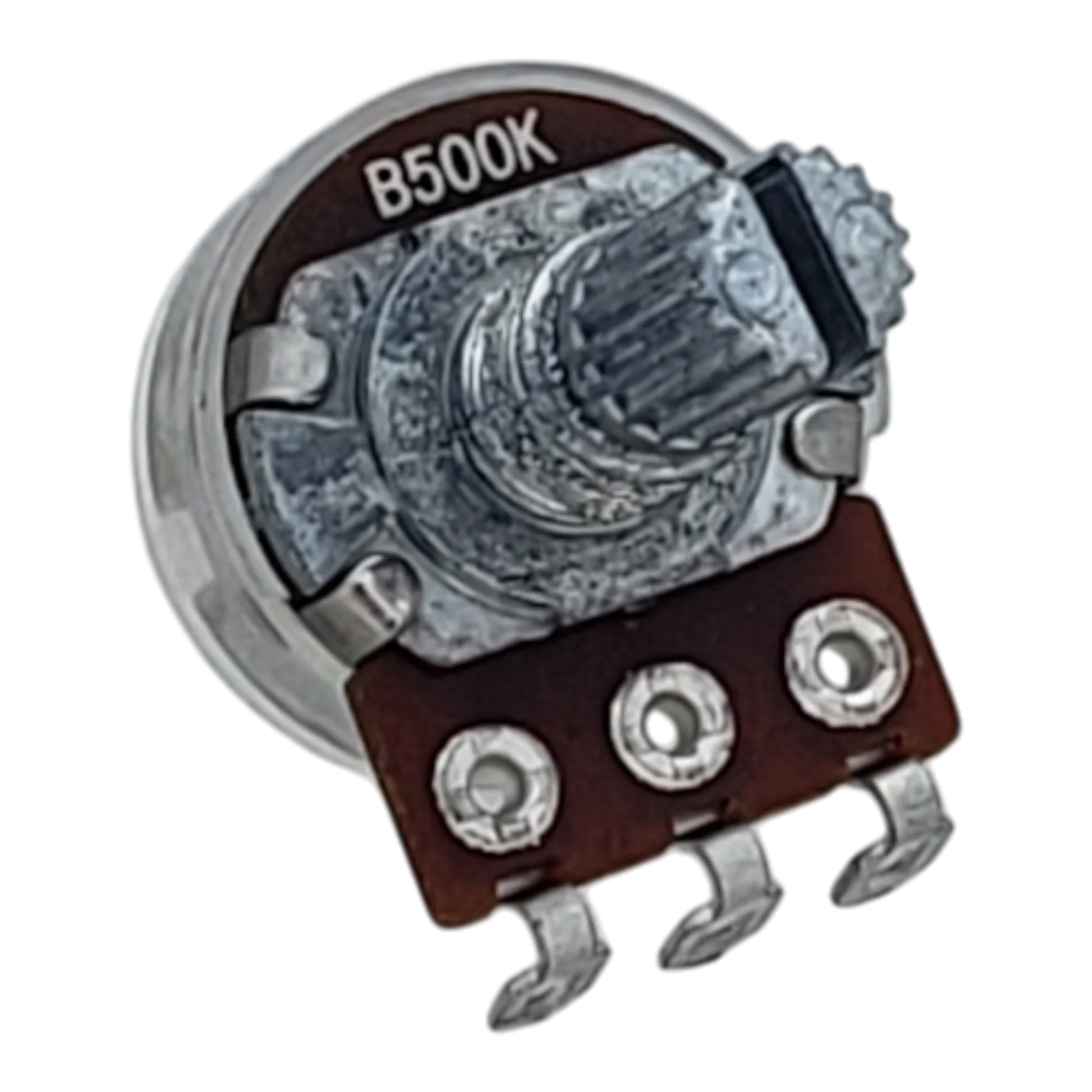

500K Linear 1/8W Potentiometer with Split Splined Shaft & Dust Seal

This 500K linear taper potentiometer is a compact control part for electronics projects, audio circuits, repairs, and custom control panels. The linear taper provides an even resistance change as the shaft turns, making it useful anywhere a smooth, predictable adjustment is needed.

It includes solder lug terminals for easy wiring and a 6mm split splined shaft that fits many standard push-on knobs. This version also includes a dust seal, which helps protect the control in everyday project and repair use.

500K Linear Potentiometer for DIY Controls and Repairs

A 500K potentiometer is commonly used in audio, guitar pedal, amplifier, signal control, and general electronics work. The solder lug design is especially convenient for hand-wired circuits, replacement controls, and panel-mounted projects.

Technical Specifications

Specification	Details
Manufacturer	Tayda Electronics
Manufacturer Part Number	RV16108NO-KA17D8.5-B500K-060C
Resistance	500K ohm
Taper	Linear, Type B
Power Rating	0.1W
Adjustment Type	Top adjustment
Terminals	Solder lugs
Dust Seal	Included
Shaft Type	Split splined / knurled shaft
Shaft Diameter	6mm
Shaft Length	17mm total, 10.5mm + 6.5mm
Thread Length	6.5mm
Mounting Hole	7.5mm
Base Diameter	16mm
Rotation Angle	300° ± 5°
Vetco SKU	TEA-5657

Why Vetco Carries This Potentiometer

Vetco carries 500K linear potentiometers because they are useful replacement and project parts for audio work, controls, and everyday electronics. This solder lug style is easy to install, easy to wire, and a good fit for customers building or repairing small electronic devices.
