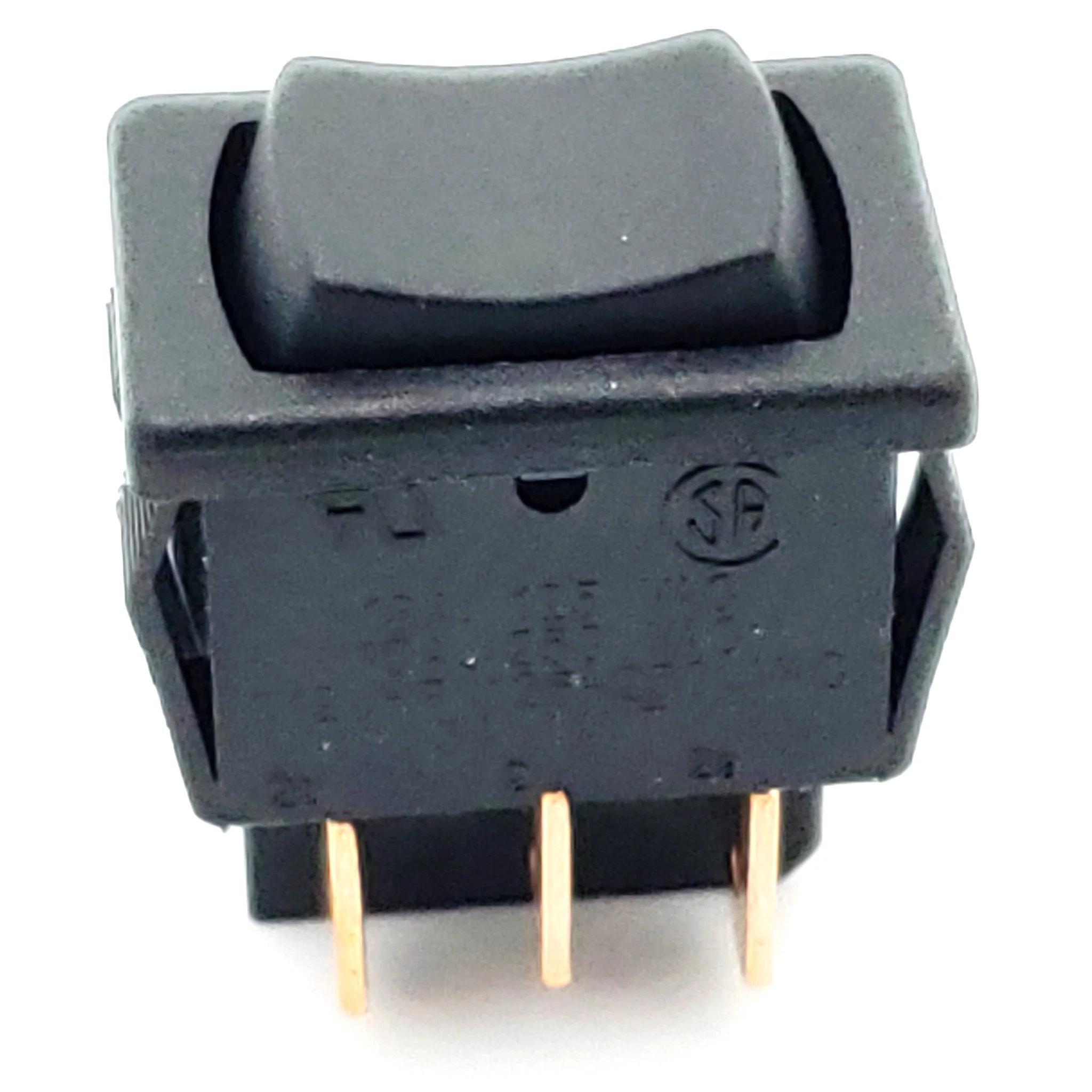

Rocker Switch DPDT - (ON) - OFF - (ON) 13A 125V Momentary
DPDT Momentary Rocker Switch – ON-OFF-ON, 13A 125V (Mom-Off-Mom)
Easy-to-Use Double Pole Double Throw Rocker Switch
Upgrade your DIY projects and home electronics with this DPDT momentary rocker switch. Perfect for anyone who needs precise control, this On-Off-On rocker switch lets you change direction instantly—making it ideal as a motor reversing switch or for other creative applications.
Key Features & Benefits
- Double Pole Double Throw (DPDT): This configuration means you can switch two separate circuits at once, or reverse polarity easily.
- Momentary Action (Mom-Off-Mom): The switch returns to the center “Off” position when released, giving you momentary on in each direction. Great for motor control or quick toggling.
- Heavy-Duty Power: Rated for up to 13A at 125V AC, this heavy-duty rocker switch is ready for demanding jobs.
- Easy Mounting: Designed for panel mount, the snap-in style makes installation fast and simple—even for beginners.
- Quick Connect Terminals: Features 0.187" (4.7mm) quick connect tabs for hassle-free wiring.
- Concave Black Actuator: Comfortable curved rocker with a clean look—no actuator markings for a simple, universal appearance.
- Long Life: Built to last with a mechanical life of 100,000 cycles and electrical life of 25,000 cycles.
- Wide Temperature Range: Works reliably from -20°C to 105°C, indoors or out.
Technical Specifications
| Category | Rocker Switches |
|---|---|
| Manufacturer | CW Industries |
| Series | 4000 |
| Switch Function | DPDT, Momentary ON-OFF-ON (Mom-Off-Mom) |
| Current Rating | 13A (AC) |
| Voltage Rating | 125V AC |
| Mounting Type | Panel Mount, Snap-In |
| Termination Style | Quick Connect - 0.187" (4.7mm) |
| Panel Cutout | 19.20mm x 12.90mm (Rectangular) |
| Operating Temperature | -20°C ~ 105°C |
| Mechanical Life | 100,000 Cycles |
| Electrical Life | 25,000 Cycles |
| Color | Black (Actuator/Cap) |
| Base Product Number | GRS-4023 |
Common Applications for Momentary DPDT Rocker Switches
- Reversing DC motor direction in DIY robotics or electric window projects
- Adding convenient controls to home or auto electronics
- As a dependable motor reversing switch in hobby and prototype projects
- Replacing toggle switches for an easier, modern look
Notes & Warnings
- This is a momentary action switch. The rocker returns to the center “off” position when released.
- No actuator marking; please label or secure your connections as needed for your application.
- Ensure compatibility with your panel cutout size (19.20mm x 12.90mm) before installation.
- Handle electrical wiring safely. Disconnect power before installing this switch.
Get Reliable Switching Performance
This DPDT on-off-on momentary rocker switch is ready for any project that needs simple, reliable, and reversible control. Backed by the trusted quality of CW Industries and available from Vetco Electronics.
